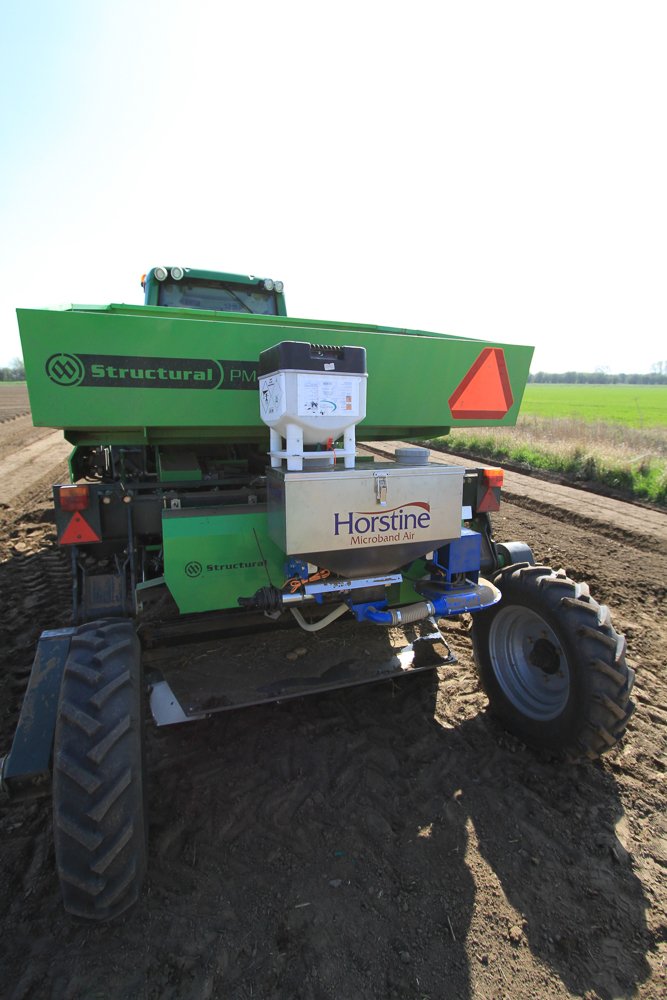

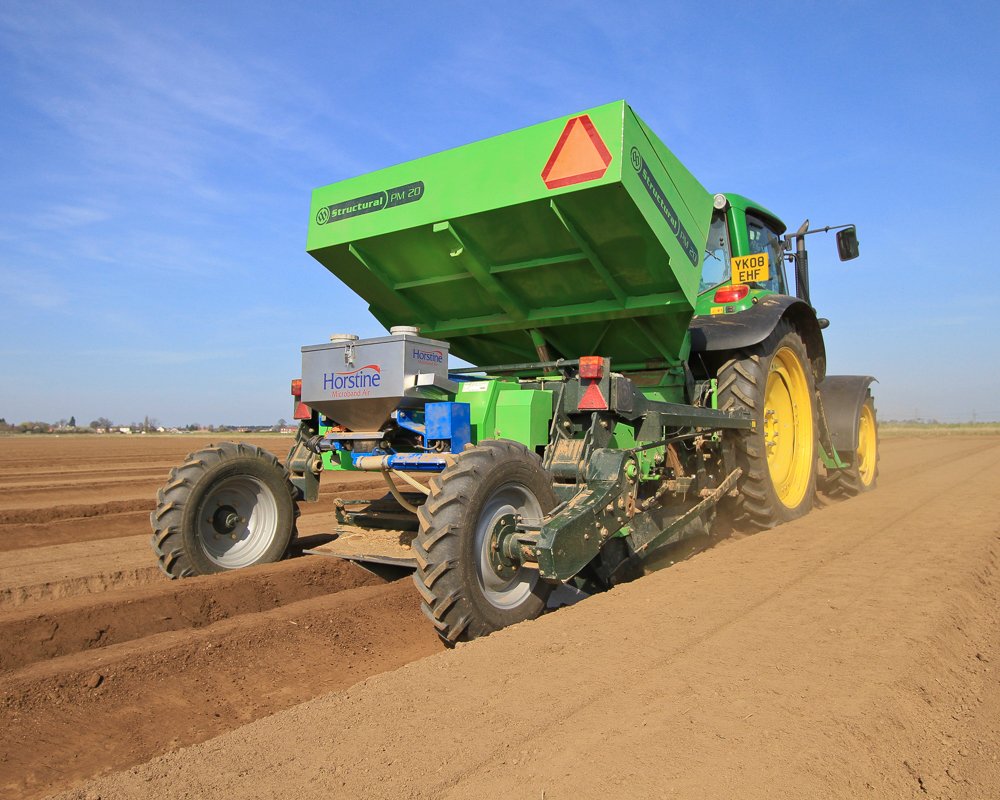

Microband Air

Microband Air is used for in furrow application of granular chemicals during planting and can be fitted to a wide range of planters. The applicator is mounted low down to aid filling and calibration, with granules being delivered to the outlets via a high capacity pneumatic fan. Automatic rate control and positive product shutoff ensures the most accurate and environmentally responsible application possible. View Brochure

Technical information

Press and slide left to see more table options

Horstine Microband Air
Hopper Size	70L Stainless Steel – Closed transfer connections
Mounting	Multiple models of 2 & 3 row planters
Metering	2 or 3 row Individual Metering
Product Delivery	Pneumatic Fan – Electrically driven
Rate Control (Standard)	Horstine Wizard Automatic rate control
Speed Sensor	ISO Speed Cable, GPS or Radar
Distribution Outlets	Fishtails with planter mounting brackets

Key Features

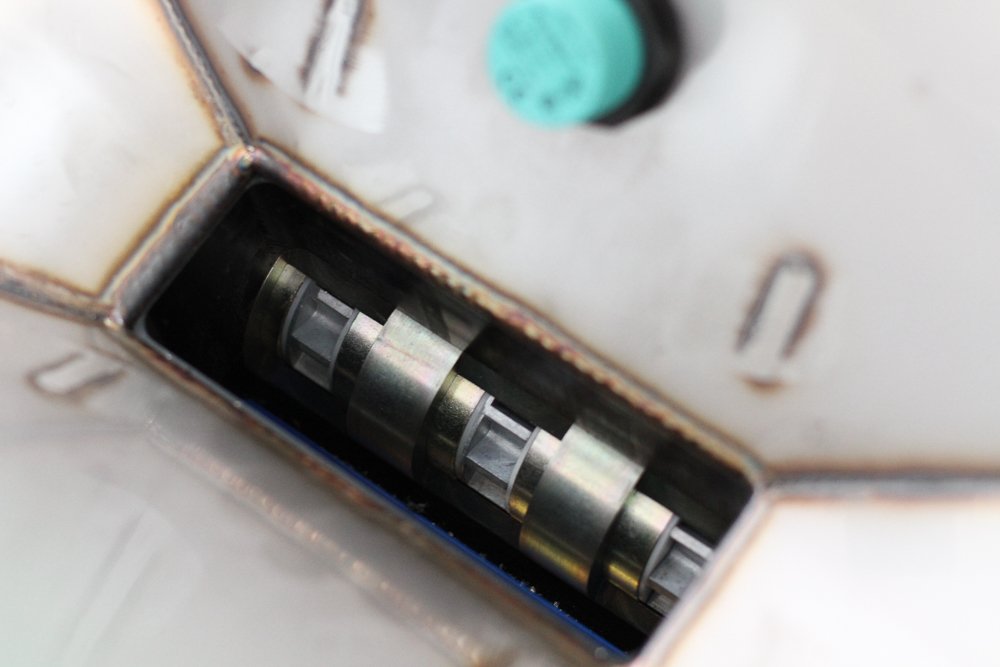

Individual Metering

Horstine’s precision metering system provides extremely accurate application, with each product outlet being fed by its own individual rotor. This system of metering guarantees application accuracy from each outlet.

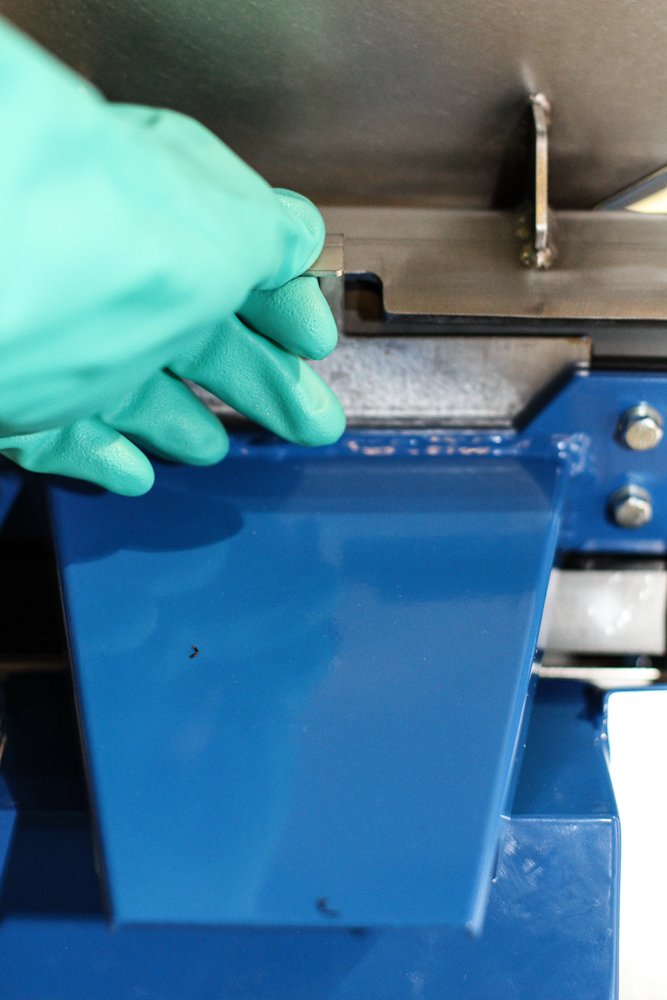

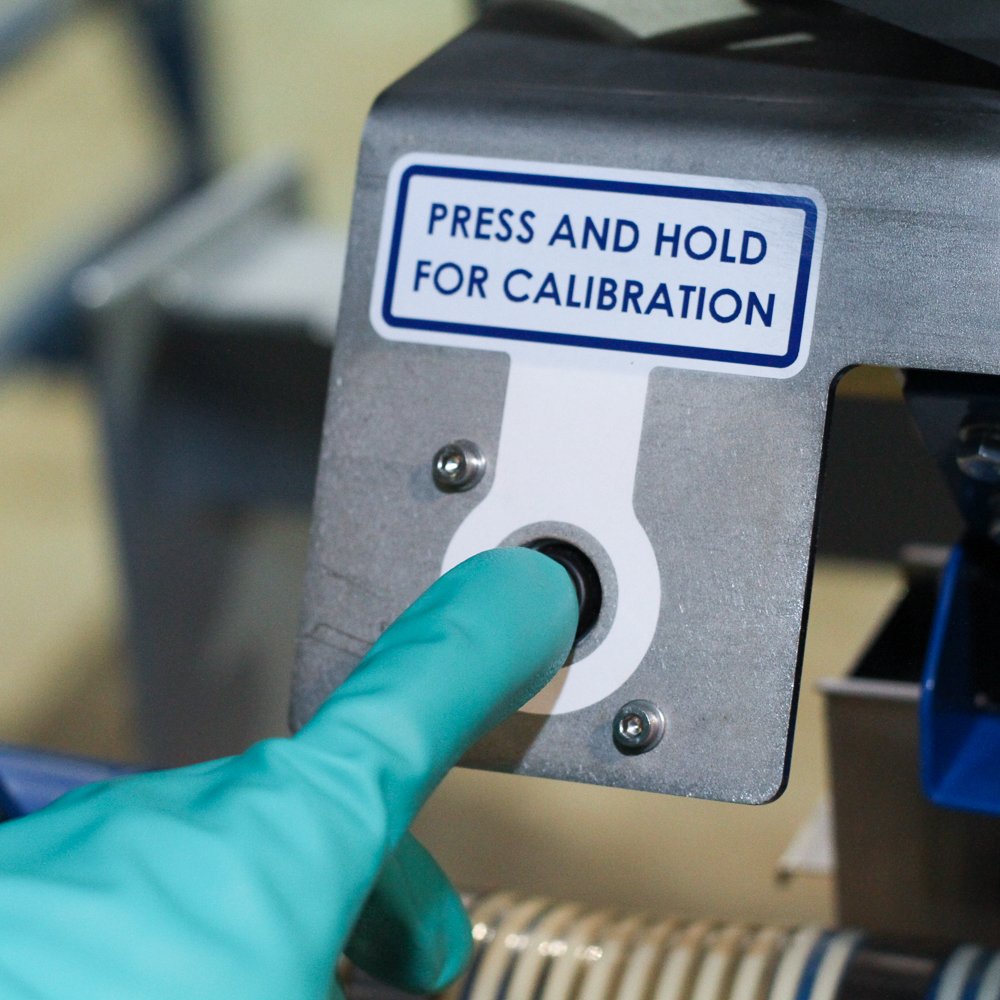

Easy Setup & Calibration

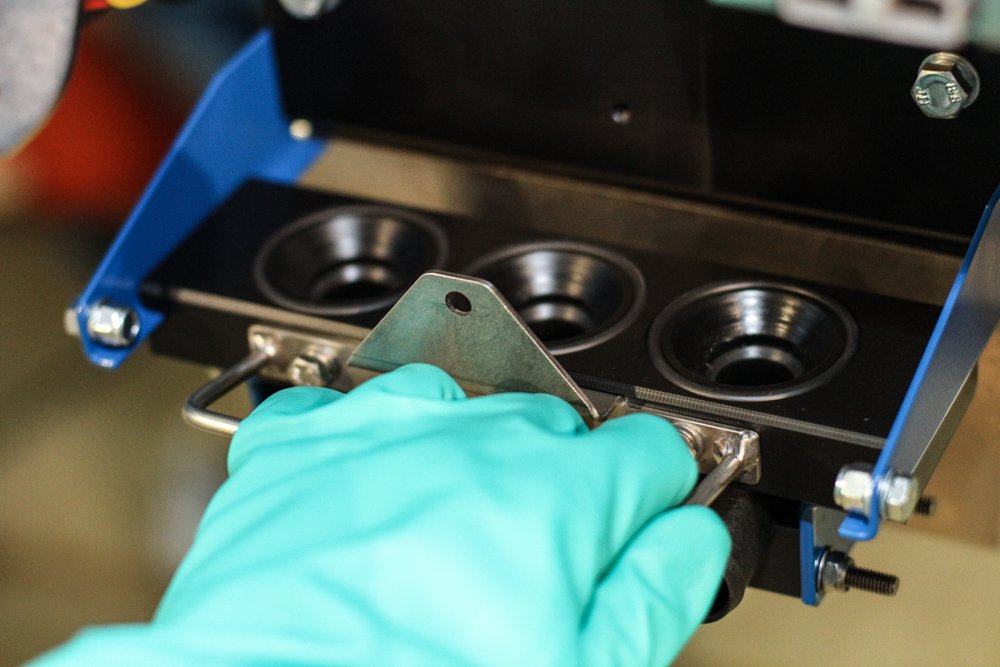

Calibration is a quick and simple process. Simply move the outlet manifold and fit the supplied calibration tray, press the prime button until a quantity of product is collected in the tray. Weigh and input this figure into the rate controller and calibration is complete.

Auto Rate Control

Microband Air utilises the Horstine Wizard automatic rate control system. Allowing easy calibration, simple rate changes, along with low level monitoring and headland shut off to guarantee absolute accuracy of nematicide application.

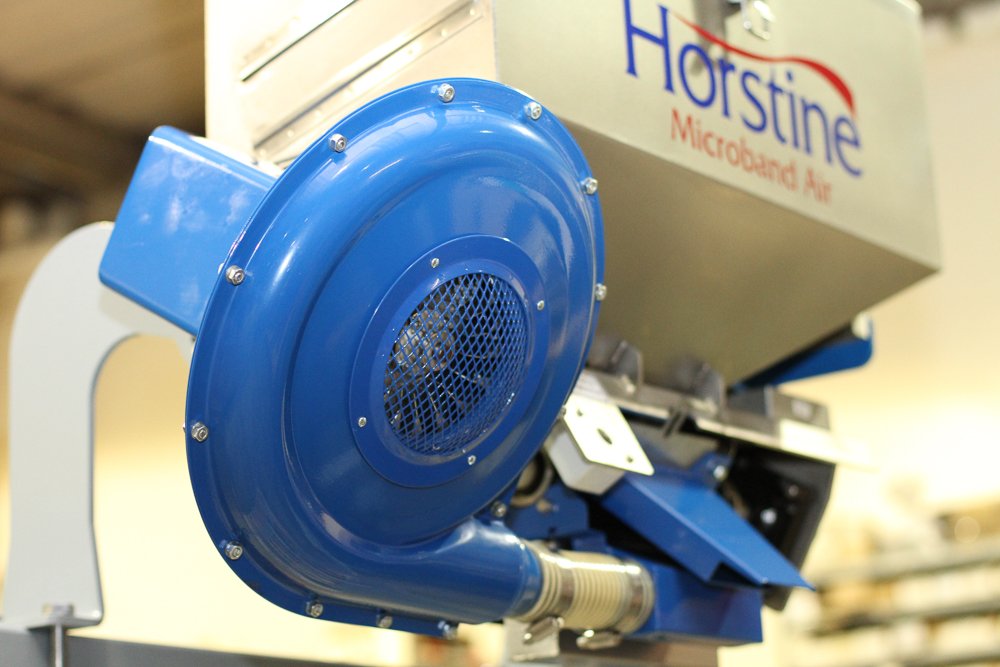

Pneumatic Delivery

Microband Air uses a high capacity electrically driven fan to deliver product to the outlet, mounted in the planter openers. The use of a pneumatic fan allows the hopper to be mounted low down on the planter for easy, safe filling.
