Cascade

Horstine Cascade utilises four hydraulically driven metering units and a high capacity fan to distribute solid fertilisers, chemicals and slug pellets. Outlets are located at one metre spacings along the vertically folding boom, with each outlet fed by its own individual rotor. Cascade offers the most accurate application of solid products over a 24m width, increasing product efficacy and widening the application window available to growers. View Brochure

Uses

The Horstine Cascade is an extremely versatile applicator, allowing a range of seeds, chemicals and fertilisers to be applied in a variety of situations in widths of 12 to 24 metres.

Pre emergence Avadex application
Broadcast solid/bulk fertilisers
Slug pellet applications
Seed application ahead of incorporation
Over seeding into a standing crop

Avadex

Technical information

Press and slide left to see more table options

Horstine Cascade
Hopper Sizes	1500L – With Internal Sieves
Mounting	3 Point Linkage

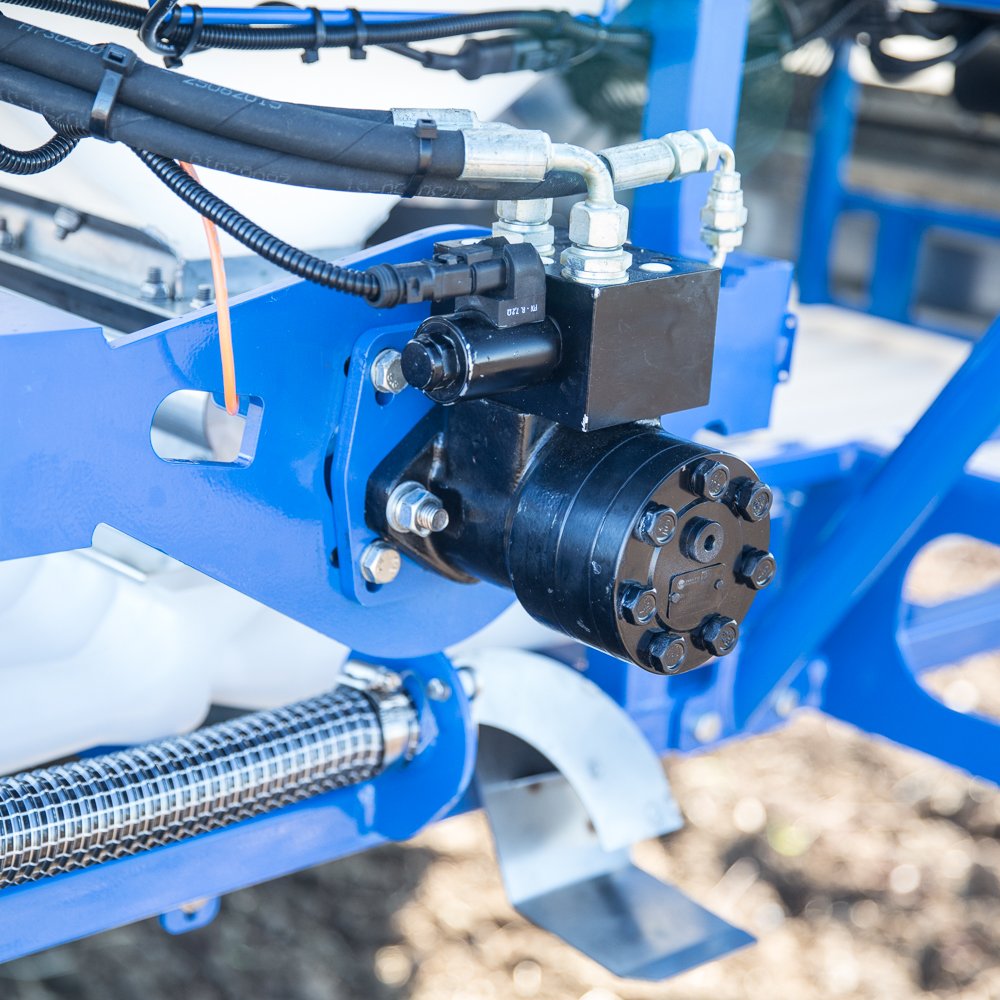

Metering	Up to 24 Individual outlets – Hydraulically driven
Product Delivery	Pneumatic Fan – Hydraulically driven
Agitation	Stainless Agitation Shaft – Hydraulically driven
Rate Control (Standard)	RDS Artemis
Rate Control (Optional)	ISObus
Speed Sensor	ISO Speed Cable, GPS or Radar

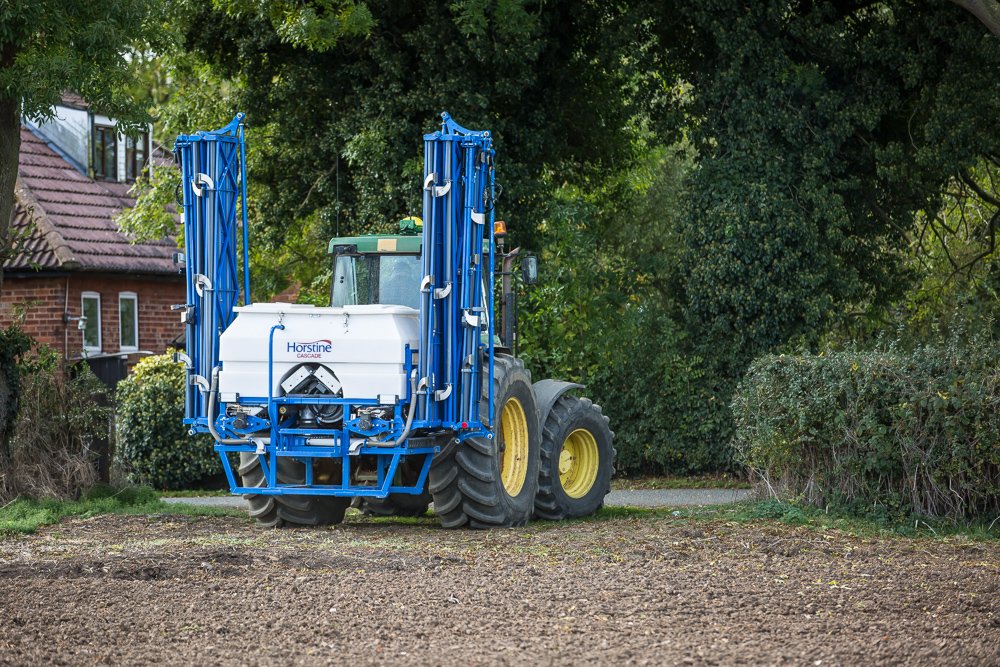

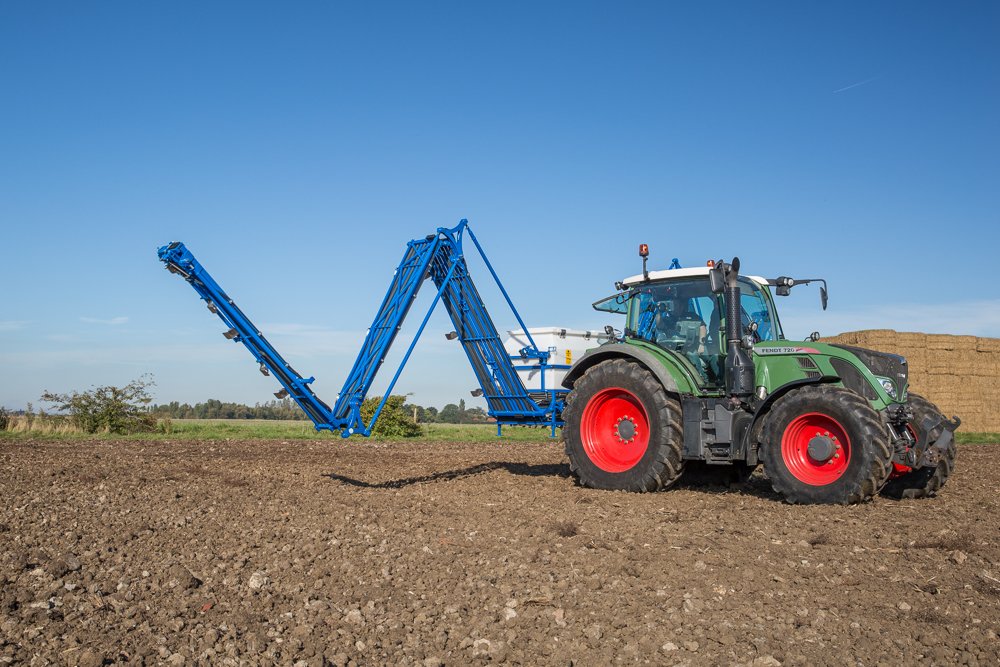

Booms	Vertical Folding – 12 to 24m

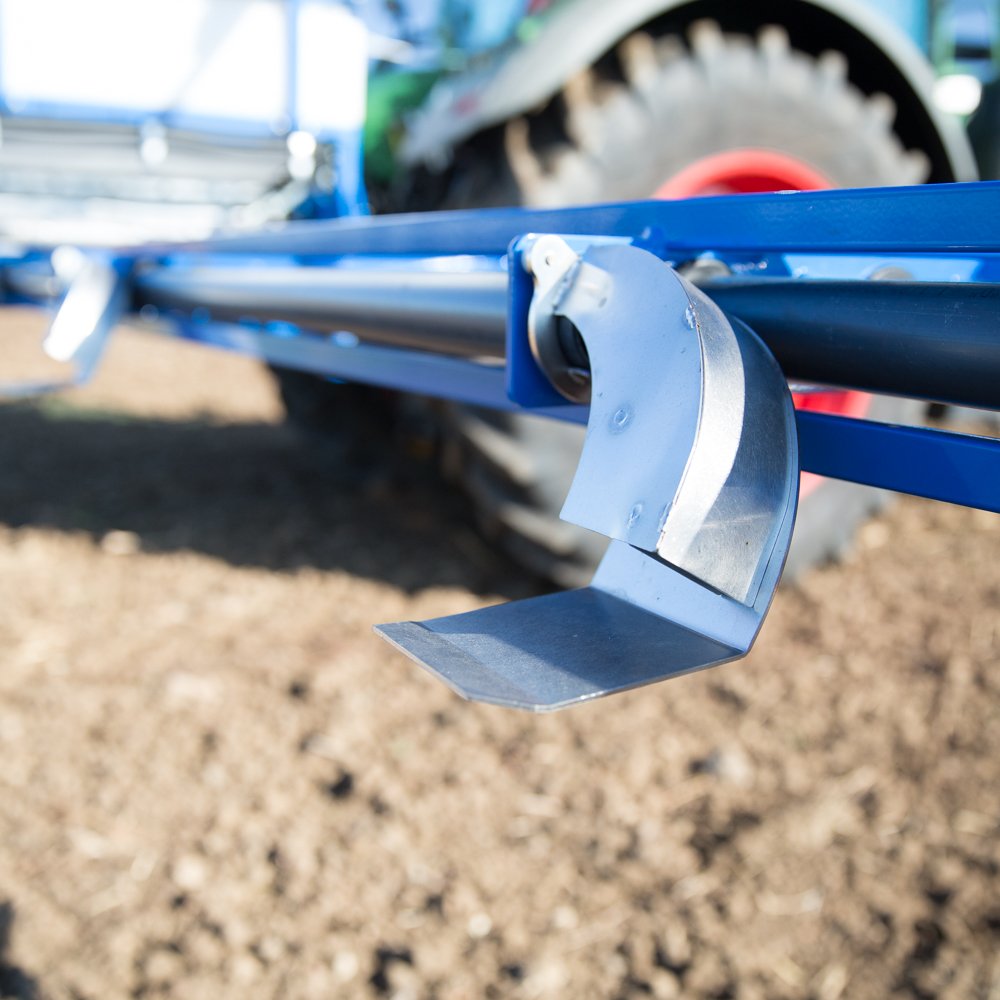

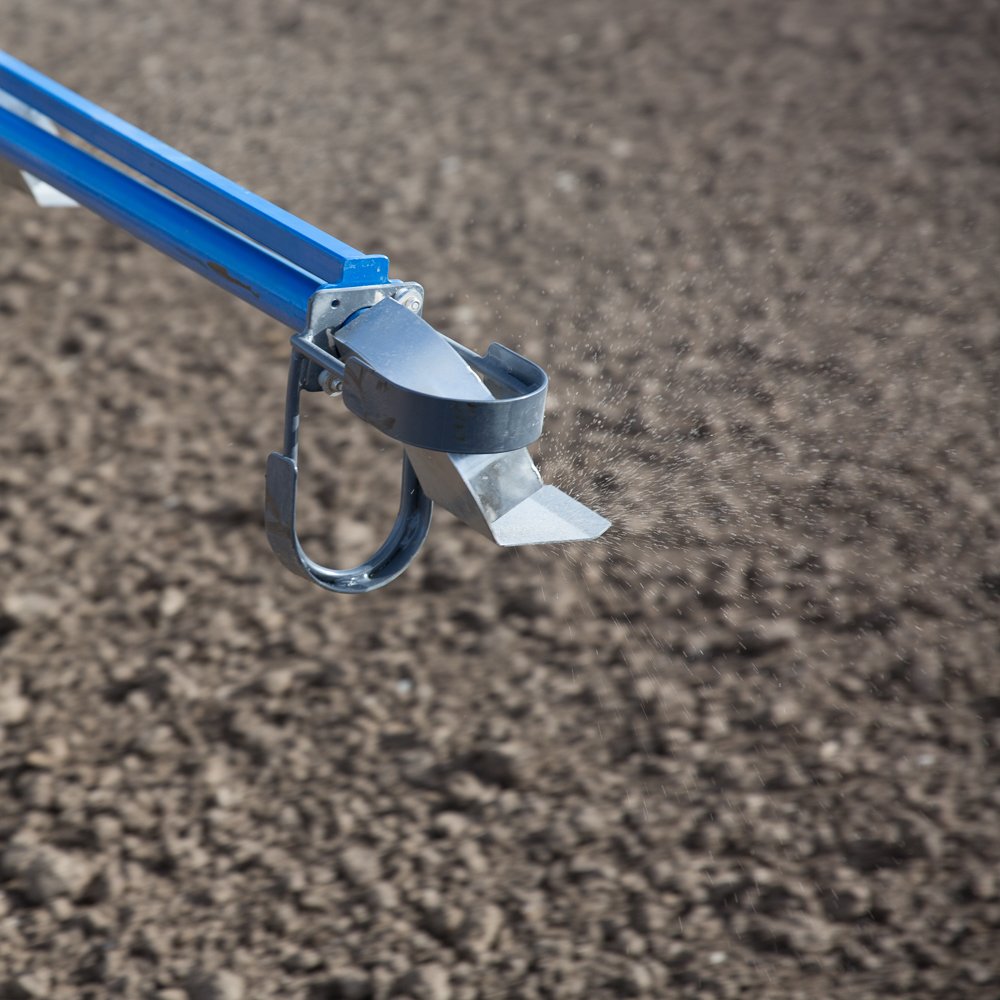

Distribution Outlets	Stainless steel outlets at 1m spacings
Sections	2 sections @ 12m, 4 sections when wider

Key Features

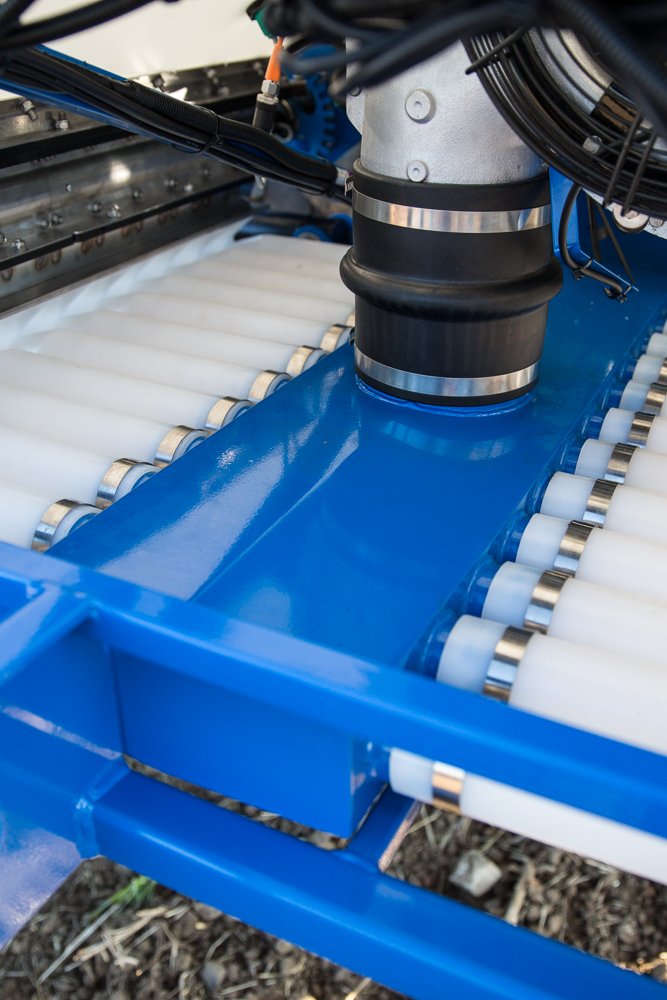

Individual Metering

Horstine’s precision metering system provides extremely accurate application, with each product outlet being fed by its own individual rotor. This system of metering guarantees application accuracy across the full 24m width of the implement.

Easy Setup & Calibration

Calibration is a quick and simple process. Remove the outlet manifold and fit the calibration tray, press the prime button until a quantity of product is collected in the tray (provided). Weigh and input this figure into the rate controller and calibration is complete.

Auto Rate Control

Cascade is ISObus ready as standard, able to utilise the tractors existing ISObus terminal for rate, auto section and variable rate control. If no screen is present an RDS terminal can be supplied or a branded screen of choice.

Pneumatic Delivery

Cascade uses a high capacity hydraulically driven fan to deliver product to the outlet, mounted at 1m spacings. Up to four application sections can be controlled, with the high flow fan ensuring product is propelled to the outlet quickly.
